Higher Intake Efficiency Shangchai Engine Open Type Genset

Higher Intake Efficiency Shangchai Engine Open Type Genset


Four-valve structure
Integral cylinder head
Without intake air heating auxiliary device
Light weight, industry-leading vibration, low nois


Ερώτηση
  • Αρχικό
  • επίδοση
STANDARD
ISO 8528: AC generator set driven by reciprocating internal combustion engine
IEC 60034-1: Basic technical requirements for rotating electrical machines
YD/T 502: Communication diesel generator set
GB/T 20136-2006: General test method for internal combustion engine power station

ΠΛΕΟΝΕΚΤΗΜΑ
Four-valve structure, optimized design of airway swirl ratio and combustion chamber to achieve higher intake efficiency, new fuel atomization mixing technology application, fuel consumption saving 8-10%;
The body B10 is safe and reliable when the service life exceeds 15000;
Integral cylinder head, rear gear chamber, flexible connection, modular design, small size, light weight, and industry-leading vibration and noise control;
Without intake air heating auxiliary device, the cold start temperature is -15℃, and the environment adaptability is strong;
Meet the requirements of performance level G3 of generator set.
ΑΠΟΔΟΣΗ
PαραμετρΜονάδαεπίδοση
Frequency drop%5
Steady-state frequency band%1.5
Relative frequency setting drop range%≥3.5
Relative frequency setting rising range%2.5
Transient frequency deviation100% sudden reduction power%≤+12
Sudden power≤-10
Frequency recovery times5
Relative frequency tolerance band%2
Steady-state voltage deviation%≤ ±2.5
Voltage unbalance%1
Transient voltage deviation100% sudden reduction power%≤+25
Sudden power≤-20
Voltage recovery times6
Voltage modulation%0.3
Relative voltage setting range%≤ ± 5
Voltage setting rate of change%/s0.2~1
Telephone harmonic factorTHF%<2
Phone influencing factorsTIF/<50

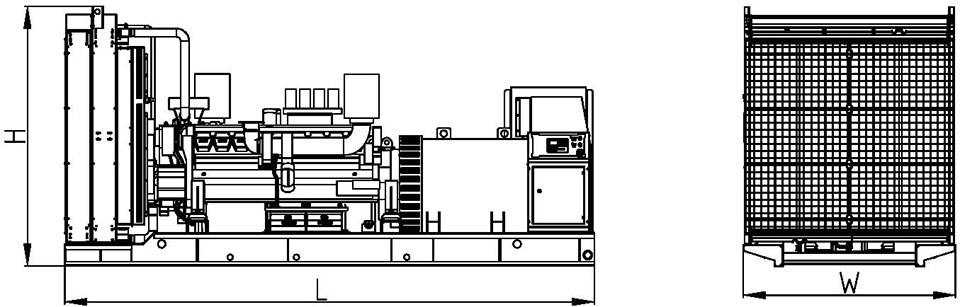

ΣΧΕΔΙΟ

图片 4 副本

ΛΕΙΤΟΥΡΓΙΚΟ ΠΕΡΙΒΑΛΛΟΝ

The main power (PRP) is the maximum power that the unit can continuously operate with variable load under standard environment (atmospheric pressure, relative humidity, ambient temperature) conditions, and allow 10% overload operation for 1 hour every 12 hours.

Altitude: ≤1000m (when >1000m, power correction is required)
Ambient temperature: 40°C (when >40°C, power correction is required)
Σχετική υγρασία: ≤60%
When the on-site operating conditions of the diesel generating set doesn’t meet the above conditions, the output power of the generator set must be corrected, and finally corrected coefficient, please consult us.
Μοντέλο GensetPrime Power(kW) Standby Power(kW)Συντελεστής ισχύοςΜετρημένη ηλεκτρική τάσηΣυχνότηταDimension (L×W×H) (mm)Βάρος (kg)Κινητήρας ΜοντέλοΑριθμός κυλίνδρωνBore×Stroke(mm)Μετατόπιση (L)Fuel Consumption(g/kW)ΤαχύτηταΣύστημα ψύξηςΜέθοδος εκκίνησης
Shangchai Generator Open Style(400V)
ATYO-S3050 55 0.8400V50HZ1850L × 800W × 1430H 850SC4H95D24105*1244.30 <2101500Ψύξη νερόElectrical Starting
ATYO-S6868 75 0.8400V50HZ1850L × 800W × 1430H 850SC4H115D24105*1244.30 <2201500Ψύξη νερόElectrical Starting
ATYO-S9090 100 0.8400V50HZ 2120L × 980W × 1260H 1300SC4H160D24105*1244.30 <2101500Ψύξη νερόElectrical Starting
ATYO-S100100 110 0.8400V50HZ 2120L × 980W × 1260H 1300  SC4H180D24105*1244.30 <2051500Ψύξη νερόElectrical Starting
ATYO-S130130 143 0.8400V50HZ2360L × 1040W × 1430H 1550SC7H220D26105*1246.44 <2101500Ψύξη νερόElectrical Starting
ATYO-S150150 160 0.8400V50HZ2360L × 1040W × 1430H1550SC7H250D26105*1246.44 <2101500Ψύξη νερόElectrical Starting
ATYO-S160160 180 0.8400V50HZ 2460L × 1070W × 1430H 1700SC8D280D26114*1358.82 <2201500Ψύξη νερόElectrical Starting
ATYO-S180180 200 0.8400V50HZ 2580L × 1070W × 1465H  1840 SC9D310D26114*1448.82 <2201500Ψύξη νερόElectrical Starting
ATYO-S200200 220 0.8400V50HZ2580L × 1070W × 1465H1840SC9D340D26114*1448.82 <2201500Ψύξη νερόElectrical Starting
ATYO-S220220 240 0.8400V50HZ3000L × 1320W × 1675H 2450SC10E380D26128*13510.80 <2201500Ψύξη νερόElectrical Starting
ATYO-S250250 275 0.8400V50HZ3000L × 1320W × 1675H2750SC12E420D26128*13511.80 <2201500Ψύξη νερόElectrical Starting
ATYO-S250G250 275 0.8400V50HZ3000L × 1320W × 1740H 2800SC13G420D26135*15012.88 <1901500Ψύξη νερόElectrical Starting
ATYO-S280280 310 0.8400V50HZ3000L × 1320W × 1675H 2800 SC12E460D26128*15311.80 <2101500Ψύξη νερόElectrical Starting
ATYO-S300300 330 0.8400V50HZ 3000L × 1320W × 1740H2850 SC15G500D26135*16514.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S360360 390 0.8400V50HZ 3300L × 1440W × 1920H 3950 SC25G610D212135*15025.80 <2201500Ψύξη νερόElectrical Starting
ATYO-S400400 440 0.8400V50HZ3300L × 1440W × 1920H 4000 SC25G690D212135*15025.80 <2201500Ψύξη νερόElectrical Starting
ATYO-S450450 500 0.8400V50HZ 3500L × 1475W × 1925H4100SC27G755D212135*15026.60 <2201500Ψύξη νερόElectrical Starting
ATYO-S500500 550 0.8400V50HZ 3500L × 1475W × 1925H 4150SC27G830D212135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S550550 600 0.8400V50HZ3500L × 1475W × 1925H4300  SC27G900D212135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S600600 660 0.8400V50HZ4030L × 1730W × 2400H 6000 SC33W990D26180*21532.80 <2101500Ψύξη νερόElectrical Starting
ATYO-S720720 792 0.8400V50HZ 4200L × 1730W × 2400H  6100 SC33W1150D26180*21532.80 <2101500Ψύξη νερόElectrical Starting
ATYO-S40F40 45 0.8400V50HZ1848L × 893W × 1196H 9504HTAA4.3-G314105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S55F50 55 0.8400V50HZ1938L × 893W × 1196H 972 4HTAA4.3-G324105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S64F64 70 0.8400V50HZ1930L × 893W × 1196H10324HTAA4.3-G334105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S80F80 88 0.8400V50HZ1930L × 943W × 1196H10874HTAA4.3-G344105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S90F90 100 0.8400V50HZ1930L × 943W × 1196H1107 4HTAA4.3-G354105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S100F100 110 0.8400V50HZ1930L × 943W × 1196H1132 4HTAA4.3-G364105*1244.30 <2001500Ψύξη νερόElectrical Starting
ATYO-S110F110 120 0.8400V50HZ2312L × 943W × 1375H972 6HTAA6.5-G316105*1246.50 <2001500Ψύξη νερόElectrical Starting
ATYO-S120F120 132 0.8400V50HZ2312L × 943W × 1375H 1352 6HTAA6.5-G326105*1246.50 <2001500Ψύξη νερόElectrical Starting
ATYO-S136F136 150 0.8400V50HZ2312L × 943W × 1375H1407 6HTAA6.5-G356105*1246.50 <2001500Ψύξη νερόElectrical Starting
ATYO-S150F150 165 0.8400V50HZ2363L × 943W × 1375H 14406HTAA6.5-G336105*1246.50 <2001500Ψύξη νερόElectrical Starting
ATYO-S160F160 180 0.8400V50HZ2550L × 991W × 1382H  18306DTAA8.9-G316114*1448.82 <2001500Ψύξη νερόElectrical Starting
ATYO-S160FG160 176 0.8400V50HZ2363L × 943W × 1375H 1480 6HTAA6.5-G346105*1246.50 <2001500Ψύξη νερόElectrical Starting
ATYO-S180F180 200 0.8400V50HZ2550L × 991W × 1382H1830   6DTAA8.9-G326114*1448.82 <2001500Ψύξη νερόElectrical Starting
ATYO-S200F200 220 0.8400V50HZ2550L × 991W × 1468H18306DTAA8.9-G336114*1448.82 <2001500Ψύξη νερόElectrical Starting
ATYO-S220F220 240 0.8400V50HZ2550L × 991W × 1468H 1830 6DTAA8.9-G346114*1448.82 <2001500Ψύξη νερόElectrical Starting
ATYO-S250F250 275 0.8400V50HZ3100L × 1105W × 1626H 23706ETAA11.8-G326128*15311.80 <2001500Ψύξη νερόElectrical Starting
ATYO-S280F280 308 0.8400V50HZ3100L × 1105W × 1626H  24806ETAA11.8-G336128*15311.80 <2001500Ψύξη νερόElectrical Starting
ATYO-S300F300 330 0.8400V50HZ3100L × 1105W × 1626H2550 6ETAA11.8-G316128*15311.80 <2001500Ψύξη νερόElectrical Starting
ATYO-S320F320 352 0.8400V50HZ3100L × 1105W × 1626H 2700 6ETAA12.8-G326130*16112.80 <2001500Ψύξη νερόElectrical Starting
ATYO-S360F360 400 0.8400V50HZ3100L × 1105W × 1626H 2700  6ETAA12.8-G316130*16112.80 <2001500Ψύξη νερόElectrical Starting
ATYO-S400F400 450 0.8400V50HZ3900L × 1608W × 2109H 47706KTAA25-G3116170*18525.20 <2001500Ψύξη νερόElectrical Starting
ATYO-S400FG400 450 0.8400V50HZ 3548L × 1400W × 1992H 430012GTAA27-G3412135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S450F450 500 0.8400V50HZ 3548L × 1400W × 1992H 4370 12GTAA27-G3312135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S460F460 506 0.8400V50HZ3900L × 1608W × 2109H 4910 6KTAA25-G3106170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S500F500 561 0.8400V50HZ3900L × 1608W × 2109H4970 6KTAA25-G396170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S500FG500 550 0.8400V50HZ3548L × 1400W × 1992H 4510 12GTAA27-G3212135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S550F550 600 0.8400V50HZ 3624L × 1400W × 1992H 4605 12GTAA27-G3112135*15526.60 <2101500Ψύξη νερόElectrical Starting
ATYO-S560F560 616 0.8400V50HZ3900L × 1608W × 2109H 5060 6KTAA25-G336170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S560FG560 616 0.8400V50HZ3900L × 1608W × 2109H 50606KTAA25-G386170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S600F600 660 0.8400V50HZ 3900L × 1608W × 2109H 5260 6KTAA25-G326170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S640F640 720 0.8400V50HZ4191L × 1608W × 2109H54006KTAA25-G316170*18525.20 <2101500Ψύξη νερόElectrical Starting
ATYO-S720F720 800 0.8400V50HZ4440L × 1975W × 2477H 70906WTAA35-G326186*21535.10 <2101500Ψύξη νερόElectrical Starting
ATYO-S800F800 880 0.8400V50HZ 4471L × 1975W × 2477H 72506WTAA35-G316186*21535.10 <2101500Ψύξη νερόElectrical Starting
